Video Colposcope

Description:

The color digital CCD camera of high resolution and clarity focuses on the deseased region,

where is enlarged by dozens of times. Images of the deseased region are then transmitted

to PC, where after being processed ,any invisible subtle changes in appearance and the

structure of the deseased part will be displayed on the screen . The device is used for clinical

of pathological changes in vulva, vagina and cervix, filtering cervix cancer by fluorescence

indirectly , and images management.

Features of performance:

1.High quality digital camera system;

2.Conveniently portable, fashion outlook;

3.Two light sources dismountable convenient for after sale service;

4.30 bulbs in each light source, with super LED 3mm make less shadow when examination;

5.Auto white balance ;

6.The speedy automatic function of focus ,adjustment, zoom in ,zoom out, freeze, filter and so on ;

7.Professional image filter, technical offering extremely high clarity of image ;

8.Easily accessible interface of uterusscope and intrauterine re sectoscope.

Features of software:

1.Capacity of freezing and storing static images continuously and a maximum of 99 images available for reviewing simultaneously in scroll;

2.Capacity of cine loop and record continuously for different frequencies dynamic images in sampling;

3.Capacity of comparison of 4 pictures in the screen , multi-orientation and dynamic consultation, copy, freeze and other function;

4.Supply hundreds of pathological reference images;

5.Capacity of image accession and comparison with the current image;

6.Color image report in multi formats and freely input information to make the user template;

7.Built international report and sent through the internet to make the long distance consultation;

8.Tens of image enhanced functions to improve the checking rate of micro-focus ;

9.Easy operating software icon, freezes and stores 99 images;

10.360 degrees omnidirectional bracket can be adjusted up and down with easy operation handle.

Specifications:

CCD: 1/4' Super HAD CCD

Pixels: ≥830,000 pixel

Illumination (min): ≤0.01Lux

Lens: Sony 18 times focus

Resolution: ≥480+ lines

Light source: 30-point ringed LED, lili-white,

super bright, cool, parallel, shadowless,

100, 000 hours longevity

Focus: 10mm ～400mm

Zoom magnification: Optical ≥54X, Eelectronical ≥12X

Collection model: Electronic collection

Depth of field: 5-200mm

Focalizing: Auto/Manual, quick

Signal-to-Noise: ≥52 db

Color filter: Green

Image collection/Cine loop /AGC/ Software package: Y

Output port of the image: S-Video/PAL/NTSC

AWB: Photometry inside AWB

Green Filter: Digital filter based on CCD imaging

Eliminate polarization: Y

Shelf: Wear resistant steel, 85-120cmcm, movable

Handle: 0-360 degree omnidirectional, with water level

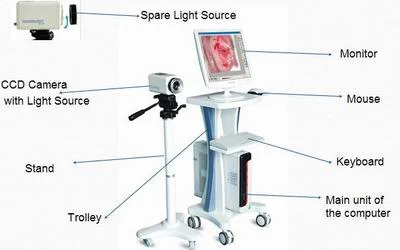

Standard Configuration:

Digital Camera System, Bracket, Control handle

Software, Footswitch, Two light source, Gather card

Optional: trolley, pc or laptop, monitor, printer
