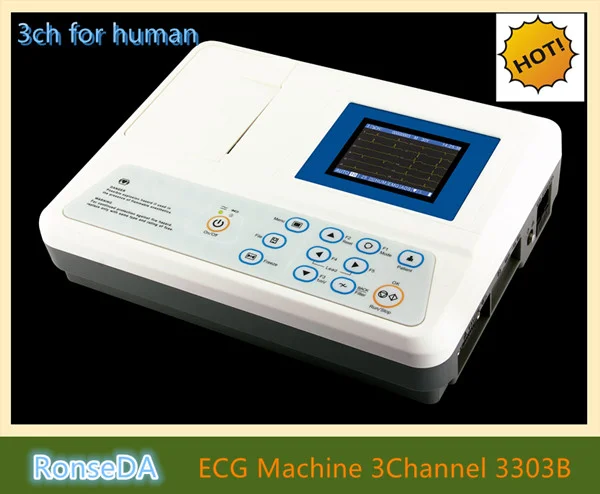

Three Channel ECG Machine

Features:

1.Portable and delicate design, easy to operate

2.Accurate pulse pace identification function

3.High accuracy digital filter, automatic baseline adjustment

4.Working modes: Manual, Automatic, Arrythmia Analysis, Storage

5.80mm, 3 channel format recording, excellent automatic interpretation

6.320x240 graphic 3.5 inch color LCD to simultaneously display ECG information

7.250 patient cases storage ( SD card storage is optional )

8.Detailed patient information record

9.Freeze function

10.Adapt to 110-230V,50/60Hz power supply. Built-in rechargeable Ni-MH battery continuously working for about 3 to 4 hours.

11.USB / Rs232 communication ports support USB storage, laser printer printing and PC ECG software ( Optional )

Technical Specifications:

1.Leads: standard 12 leads

2.Patient current leakage: ＜10μA

3.Lead acquisition:12bit/1000Hz（synchronously 12 leads ）

4.Calibrating voltage: 1mV±2％

5.Work mode: Manual, Auto, R-R analysis

6.Voltage tolerance: ≥±500mV

7.Time constant: ≥3.2s

8.Frequency response: 0.05～160Hz(-3db)

9.Input dynamic range:±10Vpp

10.Sensitivity valve: ≤20μV

11.Sensitivity: Auto,2.5, 5, 10, 20,40mm/mV（±3％）

12.Inter-channel Interference: ≤0.5mm

13.Paper speed: 6.25,12.5, 25, 50mm/s（±3％）

14.Filter

AC filter: 50Hz / 60Hz

EMG Filter: 25Hz / 45Hz

Anti-Drift Filter: 0.15Hz (Adaptive)

15.CMMR: ≥100dB (with AC filter)

16.Input Impedance: ≥50MΩ

17.Input circuit current: ≤0.05μA

18.Noise level: ＜15μVp-p

19.Input circuit: floating; protection circuit against defibrillator effect

20.Recording mode :1ch+, 3ch, 3ch+

. Default Man.Mode is 3ch format

.Default Auto.Mode is 3ch+ format

21.Display: 3.5 inch colour LCD

22.USB/RS232 is Optional

23.ECG waveform,100 patient save/replay

Standard Configuration:

1.Main unit 1 set

2.Patient cable 1 set

3.Limb electrode 1 set (4pcs)

4.Chest electrodes 1 set (6pcs)

5.Grounding cable 1 pc

6.Paper axis 1 set

7.Thermal paper 1 roll

8.Fuse 2 pcs

9.3-cord power cord 1 pc

10.AC Adaptor 1 pc

11.User manual 1 pc
