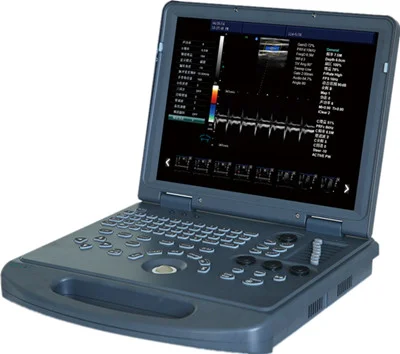

2D Full Digital Laptop Color Doppler

Features

With high precision digital beam forming and Doppler ultrasonic imaging technology, Pro incorporated the latest image processing technologies such as THI, speckle reduction, multi-beam parallel processing and efficient full-digital image management system is easy to acquire better image. Special measurement software packages, flexible configuration and ergonomical design greatly increase operators clinical diagnosis accruacy and analysis efficiency.

Application

Abdomen, OB&GYN, cardiology, vascular and small parts, urology, musculoskeletal, pediatrics and etc

Displaying mode

B, 2B, 4B, left&right, B|M, B|D, PW, M, B mode, part zoom, B|C|D, B|C|M, B|C,

duplex, PW, CFM, CPA

Signal processing

Full-digital beam forming,

dynamic filter, orthogonal

demodulating,

space-time filter, dynamic

real-time receiving focusing, RDA, DRA, spectral processing, CFM processing

Image processing

THI, speckle-reduction, color coder, frame averaging, micro- angle adjustment, wall filter, 256

grey scale, scanning angle/width control, composit processing of tissue and blood flow image

General measurement

B mode: distance, angle, perimeter and area (ellipse method, Trace method), volume, histogram,

cross-section diagram

M mode: cardiac rate, time, distance, speed.

Measurement & report packages

GYN(four edition for GA calculation), cardiac, vascular, urology, andriatrics, peripheral vascular, multiple births, orthopedic surgery and etc.

Storage function

Probe parameter, image, cine loop, measurement data and report

Cine loop

Operated by automatically and manually, speed optional, searching cine loop, forward/ backward cine loop

Input/output interface

VGA, network, USB, VIDEO, parallet communication port, serial communication port

Standard configuration

Main unit

3.5MHz convex probe( 2.0 -10.0Mhz)

15" LCD monitor

one probe connector

USB port

DICOM3.0

Optional

linear probe 2.0 -10.0Mhz

trans-vaginal probe 2.0 -10.0Mhz

Microconvex probe 2.0 -10.0Mhz

Thermal printer

laser printer

Trolley
