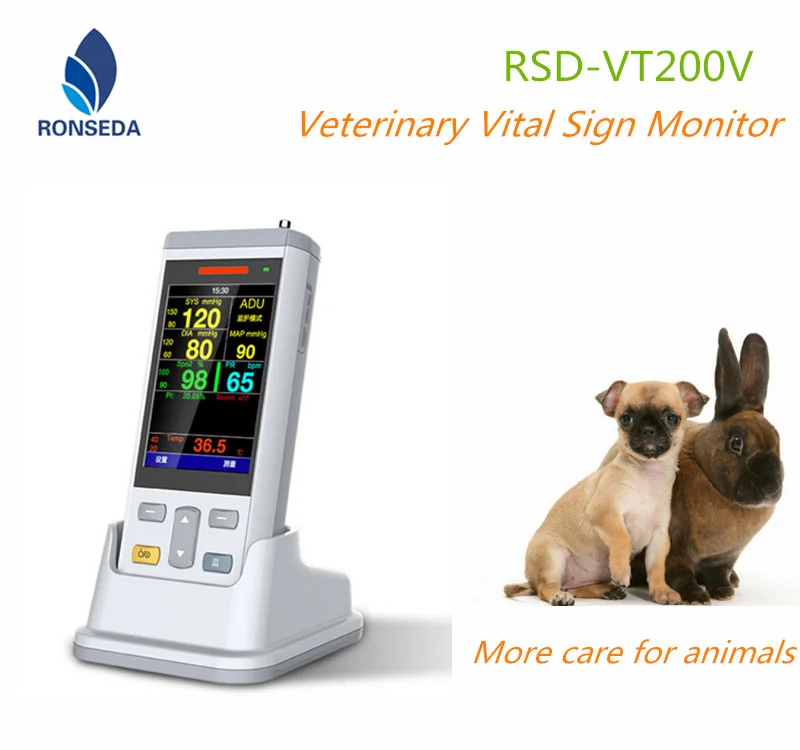

Veterinary Vital Signs Monitor

1.The smallest and exquisite handheld vital sign monitor in the worldwide

2.Accurate measurement in 0.05% Low perfusion Index,the world leading production in the movement environment

3.Provide the parameter of PI( Perfusion Index 0.05%-20%)

4.Accurate measurement in all kind of extreme environment measurement such as neonatal and shock patients

5.NIBP adopt SAWAA(Self-Adaptive-Waveform-Amplitude –Adjust)algorithm and SAFD(Self-Adaptive-Fast-Deflation)algorithm

6.Easy operation by 3.5 inch color TFT

7.Up to 100 users ID switch

8.Two measurements mode:Spot,Monitoring

9.Data storage capabilities, support for historical data view and trend chart back for checking

10.In monitoring mode, can continuously record 48 hours of measurement data

11.In spot mode,100 users ID, each user can store 200sets data

12.Support audio and visual alarm,support to set alarm upper and lower limit values

13.Lithium ion battery power supply

Specifications:

Display:3.5 inch color TFT Resolution:320X480

Indicator: Alarm indicator, Power indicator

Trace: 1 plethysmogram waveform

Alarm: Probe off, low power

Modes: Visual and Audio

Application: small animals daily check

NIBP

The wider NIBP measurement range

Pulse rate range:40~240bpm

NIBP measurement accuracy:±3mmHg

Pulse rate measurement accuracy:<=2% (>=100 BPM) or 2 beats/min (<100 BPM)

Independent software protection pressure

Adult:300mmHg PED:240mmHg NEO:150mmHg

Independent hardware protection pressure

Adult:320-330mmHg PED:265-275mmHg NEO:160-165mmHg

Oxygen Saturation (%SpO2)

Measurement range:

measure range

SpO2:0-100%

PR:0-300bpm

Perfusion index:0.05%-20%

Accuracy range:

SpO2 saturation: 70-100%

Pulse rate: 20-300BPM

Perfusion Index:0.025%-20%

Measurement accuracy

SpO2:

Adult (including pediatric ) + 2digit(70-100%) not defined (<70%)

Neonate + 3 digits not defined(<70%)

On motion condition + 3digit

PR:

Adult (including pediatric) + 3digits

Neonate + 3 digits

On motion condition + 3digit

Perfusion Index:

0.05%-20%

Resolution

SpO2 saturation: 1%

Pulse rate: 1BPM

Temperature

Measurement range: 25 -45 degree

Resolution:0.1 degree

Accuracy:0.1 degree

Power Type: Lithium ion battery

Operation time: 8 hours for normal operation

Temperature:

Operating: 0-45 degree

Starage/ Transportation: -20-65 degree

Humidity:

Operating: 15% to 90% noncondensing

Storage: 0% to 95% noncondensing

Operating Altitude: Up to 5000 meters

Size

Dimension 146mmX67mmX30mm

Weight 250g
