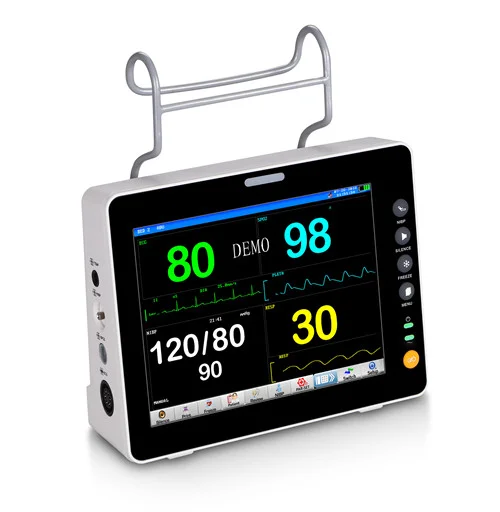

Multi-parameter patient monitor

Features:

◆Standard configuration:SPO2,ECG,NIBP,TEMP,Resp

◆8inch high brightness, high resolution color TFT LED display

◆Waterproof , fanless design, low energy consumption

◆Built-in rechargeable Li-battery working up-to 5 hours for field monitoring, ambulance and short term transportation

◆Clear bright and Large character display , NIBP measurement review, one-click operation, unique Vector display

◆7 channel ECG waveform display;ST-segment analysis

◆Application:Adult,pediatric,neonate;

working mode: diagnosis,monitor and surgery

◆13 kinds of arrhythmia analysis and 15 kinds of drug dose calculation

◆High-frequency electric surgical knives(300W),defibrillation and ESU protection

◆New SpO2 technology to ensure the accuracy and low perfusion upto 0.2% measurement

◆Intelligent audio and visual alarm function

◆Optional parts:HDMI ;EtCO2;touch screen

Specifications:

ECG

ECG Cable: Standard 3/ 5 leads

3 Leads：RA、LA、LL，Leads section：I、II、III

5 Leads：RA、LA、LL、RL、V， Leads section：I、II、III/aVR、aVL、aVF/V

Gain selection:´0.25、´0.5、´1、´2

Heart Rate Range:

Adult：15 ～ 300bpm

Children/Infant/Neonate：15 ～ 350 bpm

Accuracy：±1% or ±1bpm

Resolution：1 bpm Sensitivity >200 uV(Peak to peak)

Input Resistance >5(MΩ)

Bandwidth：

Diagnosis ：0.05～130Hz

Monitor：0.5～40Hz

Surgery ：1～20Hz

ST segment deviation analysis:

Range：-0.8 mV～+0.8mV

Accuracy：±2.0mV

NIBP:

Work mode: Manual, Automatic, Continuous

Unit: mmHg, Kpa

Measurement Range:

Adult: SYS: 40～270mmHg

DIA: 10～215mmHg

MEAN:20～240mmHg

Pediatric: SYS:40～200mmHg

DIA: 10～150mmHg

MEAN:20～165mmHg

Neonatal:SYS:40～135mmHg

DIA:10～100mmHg

MEAN:20～110mmHg

Resolution:1mmHg

Measurement Type :SYS,DIA,MEAN

Overpressure protection

Adult: 300mmHg

Pediatric :240mmHg

Infant/Neonate :150mmHg

SpO2

Measurement range:0～100%

Resolution:1%

Accuracy:±2(70～100%)

Pulse rate

Measurment range:20～300bpm

Resolution:1bpm

Accuracy:±3bpm

Respiration：

Measurement Range:

Adult: 2～120BrPM

Child/Infant/Neonate：2～150 BrPM

Resolution：1 BrPM

Accuracy：±2 BrPM

Asphyxiation alarm: 10～40 seconds

Resolution:1BrPM

Accuracy:±2%

TEMP:

Channel Number: 2

Measurement Range: 0～50°C

Resolution : 0.1°C

Accuracy:±0.1°C

Response time: ≤ 3min

Power requirement

Voltage：90～245V AC 50/60Hz

Power Consumption：15W

Battery：14.8V 2200mAH Li- Battery

Battery life: 5 hours

DC: 12～20V/2A

Working Environment：

Operating Temperature:0 ～ 40 (°C)

Transport and Storage Temperature:-20～60 (°C)

Working Humidity ≤ 85 %

Transport and Storage Humidity: ≤ 93 %
