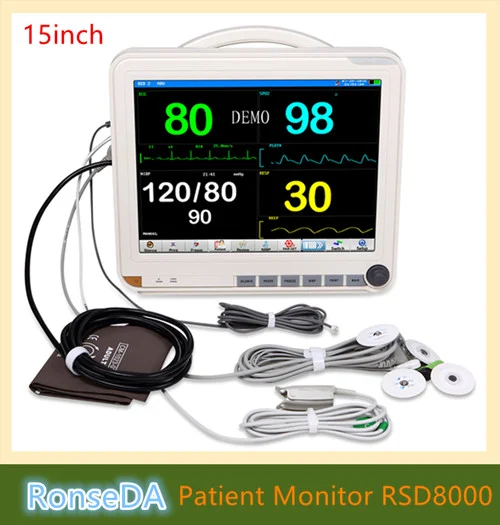

Multi-Parameter Patient Monitor 15 Inch
Product Description
Configurations:
Standard: ECG, NIBP, SpO2 and HR, TEMP*2, RESP
Optional: Printer, EtCO2, INCO2,IBP*2,Touch Screen
Features:
15 inch color TFT LCD with 1024X 768 high resolution
Rechargeable high-quality Built-in Li-battery
Easy to learn and use with simplified menus and keys
8 channel waveforms display, suitable to bedside
Suitable for adult, pediatric and neonate
Support alarm of voice, light, character string,3 levels of alarm, adjustable voice
High capacity for information storage, wired and wireless, easy to connect with central monitoring system
Technical specifications:
|
ECG Lead mode: 3 Leads or 5 Leads Lead selection: I,II,III,AVR,AVL,AVF,V Gain:X0.25,X0.5,X1,X2,Auto Heart Rate:15-300BPM(Adult) 15-350BPM(Neonatal) Resolution:1 BPM Accuracy:±1% ST measurement Range: -2.0+2.0mV Pacemaker: Yes ARR detecting: Yes Electrode offset potential: ±300mV Leakage current: <10uA NIBP Work mode: Manual, Auto, Continuous Measure Range: Adult: SYS: 40-270mmHg DIA: 10-215mmHg MEAN:20-235mmHg Pediatric: SYS:40-200mmHg DIA: 10-150mmHg MEAN:20-165mmHg Neonatal: SYS:40-135mmHg DIA:10-100mmHg MEAN:20-110mmHg Resolution:1mmHg Measurement Type :SYS,DIA,MEAN |
SpO2 Measure Range:0-100% Resolution:1% Accuracy:2%(70-100%),,0-69%,upspecified Pulse Rate:20-300BPM Resolution:1BPM Accuracy:±2BPM RESP Measure Range:0-150RPM Resolution:1BrPM Accuracy:±2% TEMP*2 Measure Range:0-50C Resolution:0.1C Accuracy:±0.1C IBP: Measure range: ART:0-300 mmHg PA:-6-120 mmHg CVP/RAP/LAP/ICP:-10-40 mmHg P1/P2:-10-300 mmHg Accuracy: ±2% or ±1 mmHg Environment: Operating Temperature: 59°to 95°F(15°to 35°C) Storage Temperature: 23°to 122°F(-5°to 50°C) Operating Humidity: 15℅ to 90℅,non-condensing |
