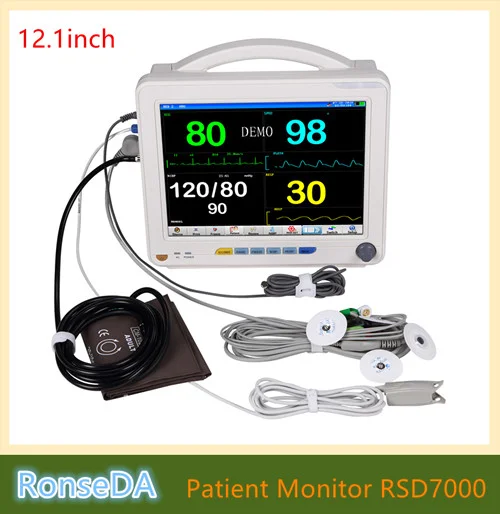

Multi-Parameter Patient Monitor 12.1 Inch
Product Description
Configurations:
Standard: ECG, NIBP, SpO2 and HR, TEMP, RESP*2
Optional: Printer, EtCO2, INCO2,IBP,Touch Screen
Features:
12.1 inch color TFT LCD screen with high-definition
Rechargeable high-quality Built-in Li-battery
Easy to learn and use with simplified menus and keys
96 hours data storage,9 waveforms display
Easy to connect with central monitoring system
Suitable for adult, pediatric and neonate
ST section and cardiac arrhythmia analysis anti-ESU and defibrillator
Arrhythmia analysis, ST segment analysis, Pacemaker detection
Technical specifications:
|
ECG Lead mode: 3 Leads or 5 Leads Lead selection: I,II,III,AVR,AVL,AVF,V Gain:X0.25,X0.5,X1,X2 Heart Rate:15-300BPM(Adult) 15-300BPM(Neonatal) Resolution:1 BPM Accuracy:±1% ST measurement Range: -2.0+2.0mV Accuracy:±10% Pacemaker: Yes Sweep Speed:12.5 mm/s,25mm/s,50mm/s Bandwidth:Diagnostic:0.05--130Hz Monitor: 0.5--40Hz Surgery: 1-20Hz NIBP Work mode: Manual, Automatic, STAT Measure Range: Adult: SYS: 40-270mmHg DIA: 10-215mmHg MEAN:20-235mmHg Pediatric: SYS:40-200mmHg DIA: 10-150mmHg MEAN:20-165mmHg Neonatal: SYS:40-135mmHg DIA:10-100mmHg MEAN:20-110mmHg Resolution:1mmHg Measurement Type :SYS,DIA,MEAN |
SpO2 Measure Range:0-100% Resolution:1% Accuracy:2%(70-100%),,0-69%,upspecified Pulse Rate:20-254BPM Resolution:1BPM Accuracy:±3BPM RESP Measure Range:0-150RPM Resolution:1BrPM Accuracy:±2% TEMP Measure Range:0-50C Resolution:0.1C Accuracy:±0.1C Power Requirements: Voltage: 13-20V DC Power Consumption: 8 watts, typical Battery: 1 sealed Li-battery Battery Life: 5 hours, typical Recharge Time: 2.5 hours, typical Environment: Operating Temperature: 59°to 95°F(15°to 35°C) Storage Temperature: 23°to 122°F(-5°to 50°C) Operating Humidity: 15℅ to 90℅,non-condensing |
