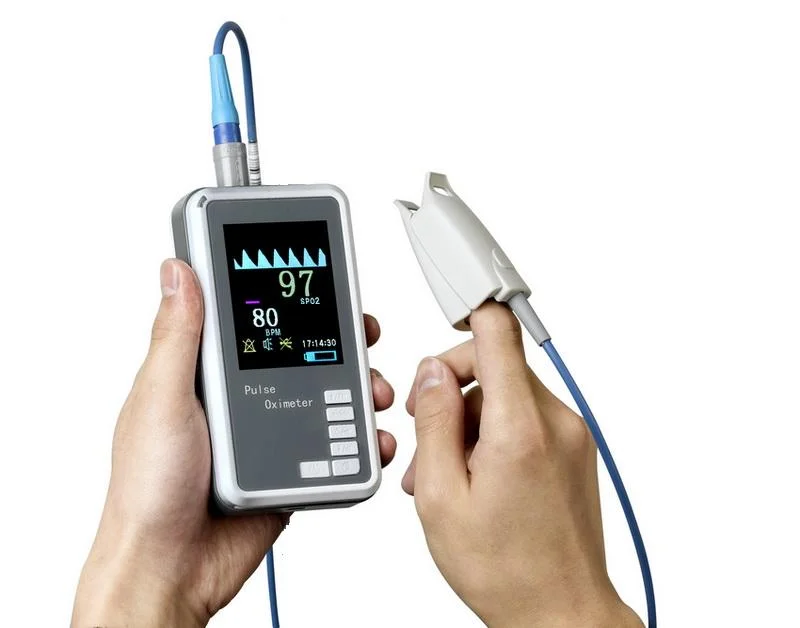

Handheld Pulse Oximeter

Features

1. Two parameters:SPO2, and Pulse Rate

2. Spo2 waveform(PLETH),PR strength display

3. 2.8 inch color TFT LCD in real time display, displayable in big font and big screen

4. Long time monitoring and sleeping monitoring

5. Audio and visual alarm when parameters exceeded and sensor-off

6. Built-in rechargeable Li-ion battery, up to 15-hour running time

7. Battery capacity indicator. Automatic shutdown for power saving

Standard accessories
one Adult finger SpO2 sensor

one AC charger

Technical Specifications

1. General

Monitoring Parameters: SpO2、PR、PLETH、Pulse strength

Signal sockets：SpO2 socket、PR socket、USB socket(for AC power)

2. Display screen

Type: 240 × 320 dot matrix color TFT LCD screen

Display area: 43mm×58mm

3. Functions

PLETH: The oximeter can display PLETH waveform

Audio and visual alarm: The speaker sounds the alarm and the parameter’s measurement will become in red to flash on the screen. Also the same when sensor-off.

Prompting: Icons of battery capacity, pulse sound switch and alarm sound switch.

Power saving: The oximeter will automatic shut down to save power. The time is settable.

4. Power Requirements

AC power adaptor

Input: AC 100 V～240V, 50/60Hz, 5VA

Output: D.C. 5V

Internal battery

Type: D.C. 3.7V/3000mAH Li-ion rechargeable battery

Run Time: 15-hour continuous operation with a new, fully charged battery (environment temperature is 25℃)

Recharge time: 8 hours

5. Environment

Temperature

Operation: 0°C ~ 45 °C

Transportation and storage: -20°C ~ 60 °C

Humidity

Operation: 15% - 95 %( noncondensing)

Transportation and storage: 10% - 95 % (noncondensing)

Altitude

Operation: 86 KPa ~106 KPa

Transportation and storage: 50KPa~106 KPa

6. Parameter Specifications

SpO2

Patient: Adult, pediatric,neonate

Range: 0% - 100%

Resolution: 1 %

Accuracy: 70% - 99%: ±2 %

0% - 69%: Unspecified

PR

Range: 0 bpm ~250bpm

Resolution: 1bpm

Accuracy: 2bpm
