Pulse oximeter
RSD7700

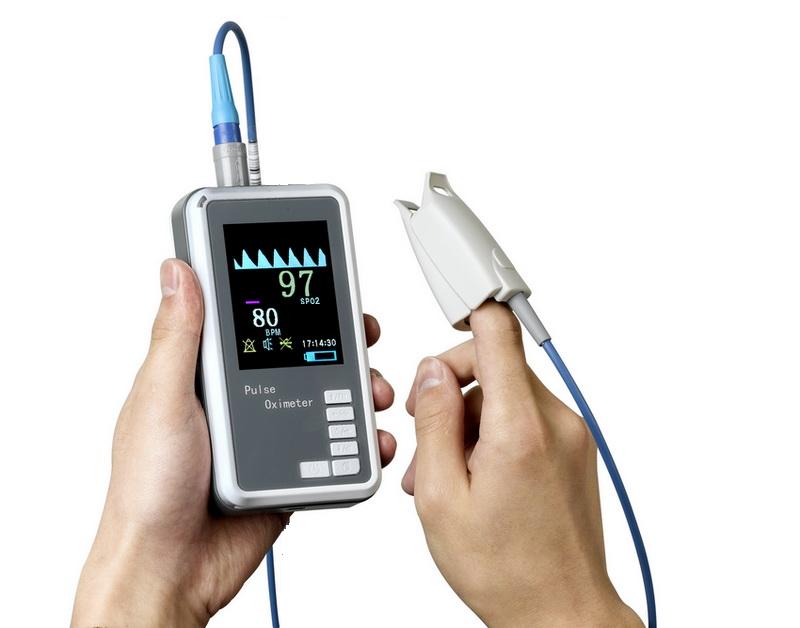

Handheld Pulse Oximeter
Details:
Features
1. Two parameters:SPO2, and Pulse Rate
2. Spo2 waveform(PLETH),PR strength display
3. 2.8 inch color TFT LCD in real time display, displayable in big font and big screen
4. Long time monitoring and sleeping monitoring
5. Audio and visual alarm when parameters exceeded and sensor-off
6. Built-in rechargeable Li-ion battery, up to 15-hour running time
7. Battery capacity indicator. Automatic shutdown for power saving

Standard accessories
one Adult finger SpO2 sensor
one AC charger

Technical Specifications
1. General
Monitoring Parameters: SpO2、PR、PLETH、Pulse strength
Signal sockets:SpO2 socket、PR socket、USB socket(for AC power)
2. Display screen
Type: 240 × 320 dot matrix color TFT LCD screen
Display area: 43mm×58mm
3. Functions
PLETH: The oximeter can display PLETH waveform
Audio and visual alarm: The speaker sounds the alarm and the parameter’s measurement will become in red to flash on the screen. Also the same when sensor-off.
Prompting: Icons of battery capacity, pulse sound switch and alarm sound switch.
Power saving: The oximeter will automatic shut down to save power. The time is settable.
4. Power Requirements
AC power adaptor
Input: AC 100 V~240V, 50/60Hz, 5VA
Output: D.C. 5V
Internal battery
Type: D.C. 3.7V/3000mAH Li-ion rechargeable battery
Run Time: 15-hour continuous operation with a new, fully charged battery (environment temperature is 25℃)
Recharge time: 8 hours
5. Environment
Temperature
Operation: 0°C ~ 45 °C
Transportation and storage: -20°C ~ 60 °C
Humidity
Operation: 15% - 95 %( noncondensing)
Transportation and storage: 10% - 95 % (noncondensing)
Altitude
Operation: 86 KPa ~106 KPa
Transportation and storage: 50KPa~106 KPa
6. Parameter Specifications
SpO2
Patient: Adult, pediatric,neonate
Range: 0% - 100%
Resolution: 1 %
Accuracy: 70% - 99%: ±2 %
0% - 69%: Unspecified
PR
Range: 0 bpm ~250bpm
Resolution: 1bpm
Accuracy: 2bpm
