ETCO2 Monitor
ET100
Mainstream EtCO2 Sensor
Details:
Product Introduction

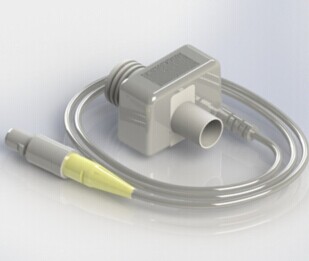

The ET100 Sensor is a highly integrated mainstream CO2 Sensor which developed by RSD medical, who had tens of years IR measurement instrument development experience. It’s the one-step capnography solution for patient monitoring system. Within a very compact size, it provides measurement of End-Tidal Carbon Dioxide(ETCO2), respiration rate, capnogram, which can cover most of requirement from the patient monitoring system. With a very simple RS232 interface and industry compatible protocol, it’s fairly easy to connect ET100 to any patient monitoring system and other medical treatment system where CO2 sensor is needed.
With the stability, flexibility and easy to use as the built in essence, ET100 is your ideal choice for your capnography subsystem.

Product Features
1.Real time CO2 monitoring and data upload
2.Dual wavelength , non-dispersive infrared(NDIR)
3.With fast electrical modulation MEMS IR source, moving part was avoid and long lifetime was achieved
4.Includes temperature control system, to prevent airway adapter condensing
5.Barometer pressure and Gas temperature compensation
6.Patent on calibration algorithm, no routine user calibration required
7.Small size and lightweight

SPECIFICATIONS
Transducer Type
Mainstream CO2 Sensor
Principle of Operation
Non-dispersive infrared(NDIR), dual wavelength, no moving parts
Initialization Time
Capnogram displayed in less than 5 seconds,full specifications within 2 minutes
CO2 Measurement Range
0 – 114 mmHg, 0 – 15 %, 0 – 15.2 kPa(760mmHg)
Rise Time
Less than 60 ms - Adult Reusable or Single-Patient-Use Airway Adapter
Less than 60 ms - Infant Reusable or Single-Patient-Use Airway Adapter
CO2 Resolution
0.1mmHg         0 to 59 mmHg
0.25 mmHg        60 to 114mmHg
CO2 Accuracy
0 – 40mmHg       ±2 mmHg
41 – 76 mmHg     ±5% of reading
77 – 114 mmHg    ±8% of reading
Above 80 BPM     ±12% of reading
CO2 Stability
Short term drift: Drift over four hours shall not exceed 1 mmHg maximum
Long term drift: Accuracy specification will be maintained over a 120-hour period
Sampling Frequency
100 Hz
Respiration Rate Range
2 to 150 Breaths Per Minute (BPM)
Respiration Rate Accuracy
±1 breath
Compensations
(Supplied)
Barometric pressure: 400 mmHg to 800 mmHg
Operator selectable O2, N2O, He and agent compensation
Calibration
No routine user calibration required. An airway adapter zero is required when changing
Airway Adapters
Single-patient-use or reusable, < 5 cc dead space (adult), < 1 cc dead space infant
Voltage Requirements
5.0 VDC  ±5%
Power Consumption
1.2Watts typical (Steady State)
Up to 1.8 Watts maximum on power up (Warm up)
Interconnection
(The RS232 connector version is also provided)
Standard - Lemo Redel 8-pin plastic connector
Pin out:
1.       VA           5.0VDC
2.       Shield        Shield
3.       DGND        Digital return
4.       VSRC         5.0VDC
5.       TxD          Serial data from Sensor
6.       RxD          Serial data from Host
7.       AGND        Analog return
8.       SYNC         Unused
Data Interface
RS232 , bi-directional, 19200 baud rate, standard N-8-1.
Data Output
CO2 gas concentration(mmHg), End-tidal CO2, Inspired CO2, Respiratory Rate. Gas and barometric pressure compensated when supplied by host.
Temperature and Humidity
Operating:  0 to 45℃, 10 to 90% RH, non-condensing
Storage:  -40 to 70℃, <90% RH, non-condensing
Water Resistance
IPX4 – Splash-proof (sensor head only)
