Patient Monitor

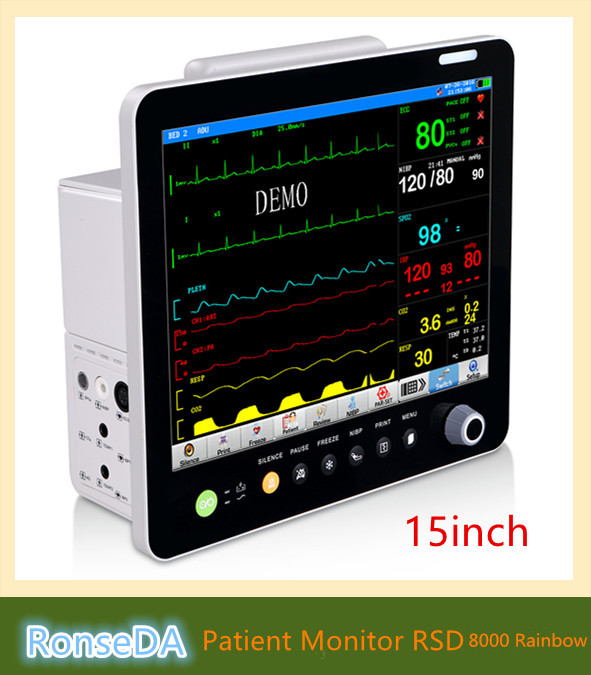

RSD 8000 Rainbow
Multi-Parameter Patient Monitor 15 Inch
Details:
Configurations:
Standard: ECG, NIBP, SpO2 and HR, TEMP*2, RESP
Optional: Printer, EtCO2, INCO2,IBP*2,Touch Screen

Features:
15 inch olor TFT LED with max 13 waveforms
Rechargeable high-quality Built-in Li-battery
Easy to learn and use with simplified menus and keys
8 channel waveforms display, suitable to bedside
Suitable for adult, pediatric and neonate
Support alarm of voice, light, character string,3 levels of alarm, adjustable voice
High capacity for information storage, wired and wireless, easy to connect with central monitoring system

Technical specifications:
ECG
Lead mode: 3 Leads or 5 Leads
Lead selection: I,II,III,AVR,AVL,AVF,V
Gain:X0.25,X0.5,X1,X2,Auto
Heart Rate:15-300BPM(Adult) 15-350BPM(Neonatal)
Resolution:1 BPM
Accuracy:±1%
ST measurement Range: -2.0+2.0mV
Pacemaker: Yes
ARR detecting: Yes
Electrode offset potential: ±300mV
Leakage current: <10uA

NIBP
Work mode: Manual, Auto, Continuous
Measure Range:
Adult:  SYS:  40-270mmHg
          DIA:  10-215mmHg
          MEAN:20-235mmHg
Pediatric:
        SYS:40-200mmHg
        DIA: 10-150mmHg
        MEAN:20-165mmHg
Neonatal:
        SYS:40-135mmHg
        DIA:10-100mmHg
        MEAN:20-110mmHg
Resolution:1mmHg
Measurement Type :SYS,DIA,MEAN
SpO2
Measure Range:0-100%
Resolution:1%
Accuracy:2%(70-100%),,0-69%,upspecified
Pulse Rate:20-300BPM
Resolution:1BPM
Accuracy:±2BPM

RESP
Measure Range:0-150RPM
Resolution:1BrPM
Accuracy:±2%

TEMP*2
Measure Range:0-50C
Resolution:0.1C
Accuracy:±0.1C

IBP:
Measure range:
ART:0-300 mmHg
PA:-6-120 mmHg
CVP/RAP/LAP/ICP:-10-40 mmHg
P1/P2:-10-300 mmHg
Accuracy: ±2% or ±1 mmHg

Environment:
Operating Temperature: 59°to 95°F(15°to 35°C)
Storage Temperature: 23°to 122°F(-5°to 50°C)
Operating Humidity: 15℅ to 90℅,non-condensing
