ETCO2 Monitor
ET600

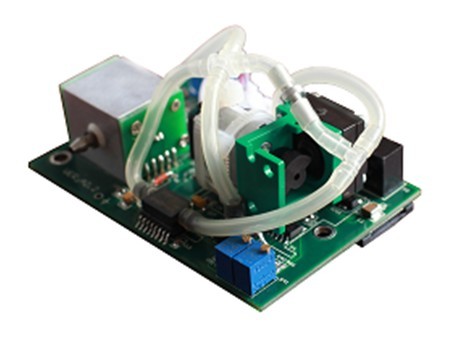

Sidestream CO2CGM Module
Details:
Product Introduction:
The ET600 CO2 sensor is the ideal low sampling-rate capnography solution for your patient monitoring system. ET600 can show an accurate capnogram with all respiration rates up to 120 breaths per minute. Cutting-edge technology enables ET600 to provide accurate measurement of instantaneous CO2 concentration, respiration rate, end-tidal CO2, inspired CO2, inspiration time and expiration time. With a sampling-rate low to 50 mL/min, ET600 is ideal for use on adult, pediatric and infant patients; patients undergoing procedural sedation; and short- term monitoring of intubated patients.

Product Features
1.State-of-the-art Non-dispersive infrared (NDIR) technology, dual wavelength, no moving parts
2.Breath-by-breath CO2 monitoring
3.Sample rate low to 50 mL/min
4.Barometer pressure and temperature compensation
5.Range calibration in 0 – 15% by manufacturer
6.Fast warmup time ensures full accuracy within 5 minutes
7.Oxygen, N2O and anesthetic compensation for accurate measurement
8.Low power consumption less than 2W
9.Fully compatible with Respronics Loflo sensor and CPT module

Technical Specifications:
Transducer Type
ET600 Sidestream CO2 sensor
Sample Rate
50 mL/min, ±10mL/min.
Principle of Operation
Non-dispersive infrared (NDIR) single beam optics, dual wavelength, no moving parts
Initialization Time
Capnogram displayed in less than 5 seconds
Reaching full specifications within 5 minutes.
CO2 Measure Range
0 - 114 mmHg
0 - 15%
0 - 15.2kPa
CO2 Resolution
0.1 mm Hg      0 to 50 mm Hg
0.25 mm Hg     50 to 114 mm Hg
CO2 Accuracy
0 – 40 mmHg    ±2 mmHg
40 – 114 mmHg  ±5% of reading
Respiratory Rate
Range          2 to 120 Breaths Per Minute (BPM)
Accuracy       ±1 breath
Calibration
No routine user calibration required
Compensation
Automatic Barometer Pressure 400 - 800 mmHg.
User selectable O2 / N2O compensation.
Voltage Requirements
5.0 VDC ±5%
Power Consumption
Less than 1.5 Watts typical.
Temperature and Humidity
Operating: 0º to 40°, 10 to 90% RH, non-condensing
Storage:  -40º to 70ºC, <90% RH, non-condensing
Interconnection
Pin out:
1.   TxD           Serial data from LH600
2.   RxD           Serial data from Host
3.   AGND         Analog return
4.   DGND         Digital return
5.   VA            5.0V
Data Interface
TTL level, bi-directional, 19200 baud rate, standard N-8-1.
Fully compatible with Respironics LoFlo communication protocol
Data Output
CO2 gas concentration (mm Hg), End-tidal CO2, Inspired CO2, Respiratory Rate, barometric pressure compensation. Compensation for O2 (0 - 100%) and N2O (On / Off) when supplied by host.
