Patient Monitor

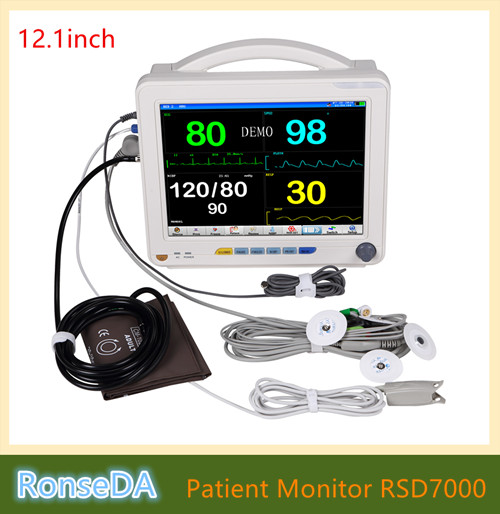

RSD 7000
Multi-Parameter Patient Monitor 12.1 Inch
Details:
Configurations:
Standard: ECG, NIBP, SpO2 and HR, TEMP, RESP*2
Optional: Printer, EtCO2, INCO2,IBP,Touch Screen

Features:
12.1 inch color TFT LCD screen with high-definition
Rechargeable high-quality Built-in Li-battery
Easy to learn and use with simplified menus and keys
96 hours data storage,9 waveforms display
Easy to connect with central monitoring system
Suitable for adult, pediatric and neonate
ST section and cardiac arrhythmia analysis anti-ESU and defibrillator
Arrhythmia analysis, ST segment analysis, Pacemaker detection

Technical specifications:
ECG
Lead mode: 3 Leads or 5 Leads
Lead selection: I,II,III,AVR,AVL,AVF,V
Gain:X0.25,X0.5,X1,X2
Heart Rate:15-300BPM(Adult) 15-300BPM(Neonatal)
Resolution:1 BPM
Accuracy:±1%
ST measurement Range: -2.0+2.0mV
Accuracy:±10%
Pacemaker: Yes
Sweep Speed:12.5 mm/s,25mm/s,50mm/s
Bandwidth:Diagnostic:0.05--130Hz
               Monitor: 0.5--40Hz
               Surgery: 1-20Hz
NIBP
Work mode: Manual, Automatic, STAT
Measure Range:
Adult:  SYS:  40-270mmHg
          DIA:  10-215mmHg
          MEAN:20-235mmHg
Pediatric:
        SYS:40-200mmHg
        DIA: 10-150mmHg
        MEAN:20-165mmHg
Neonatal:
        SYS:40-135mmHg
        DIA:10-100mmHg
        MEAN:20-110mmHg
Resolution:1mmHg
Measurement Type :SYS,DIA,MEAN
SpO2
Measure Range:0-100%
Resolution:1%
Accuracy:2%(70-100%),,0-69%,upspecified
Pulse Rate:20-254BPM
Resolution:1BPM
Accuracy:±3BPM

RESP
Measure Range:0-150RPM
Resolution:1BrPM
Accuracy:±2%

TEMP
Measure Range:0-50C
Resolution:0.1C
Accuracy:±0.1C

Power Requirements:
Voltage: 13-20V DC
Power Consumption: 8 watts, typical
Battery: 1 sealed Li-battery
Battery Life: 5 hours, typical
Recharge Time: 2.5 hours, typical

Environment:
Operating Temperature: 59°to 95°F(15°to 35°C)
Storage Temperature: 23°to 122°F(-5°to 50°C)
Operating Humidity: 15℅ to 90℅,non-condensing
